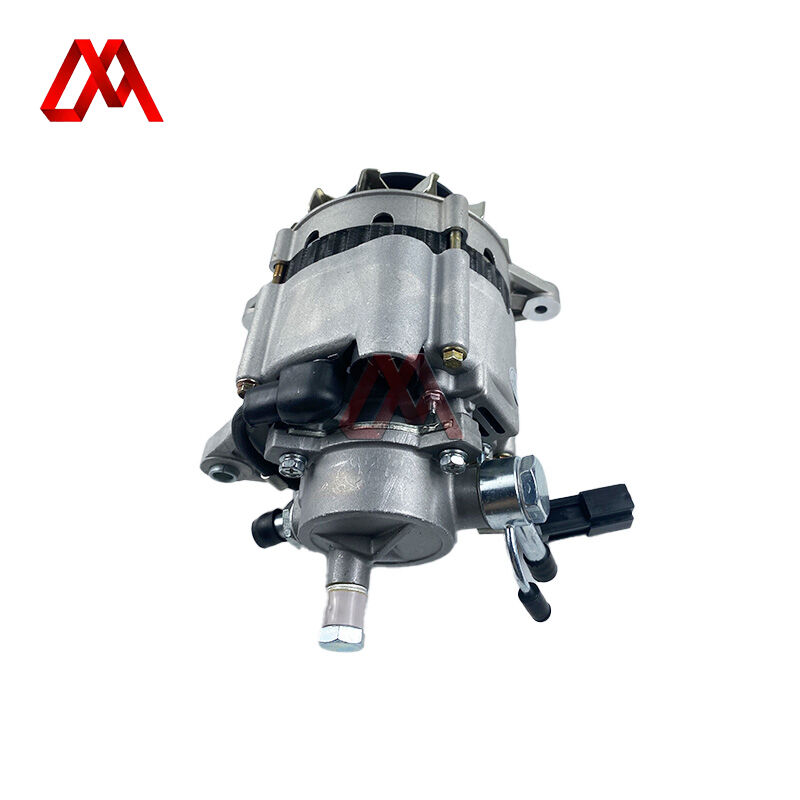

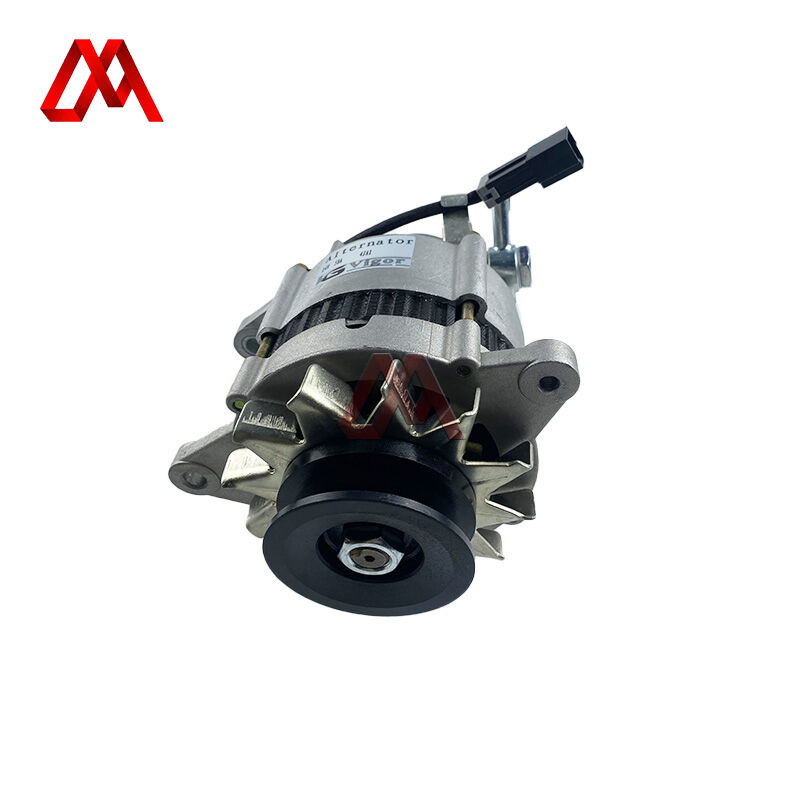

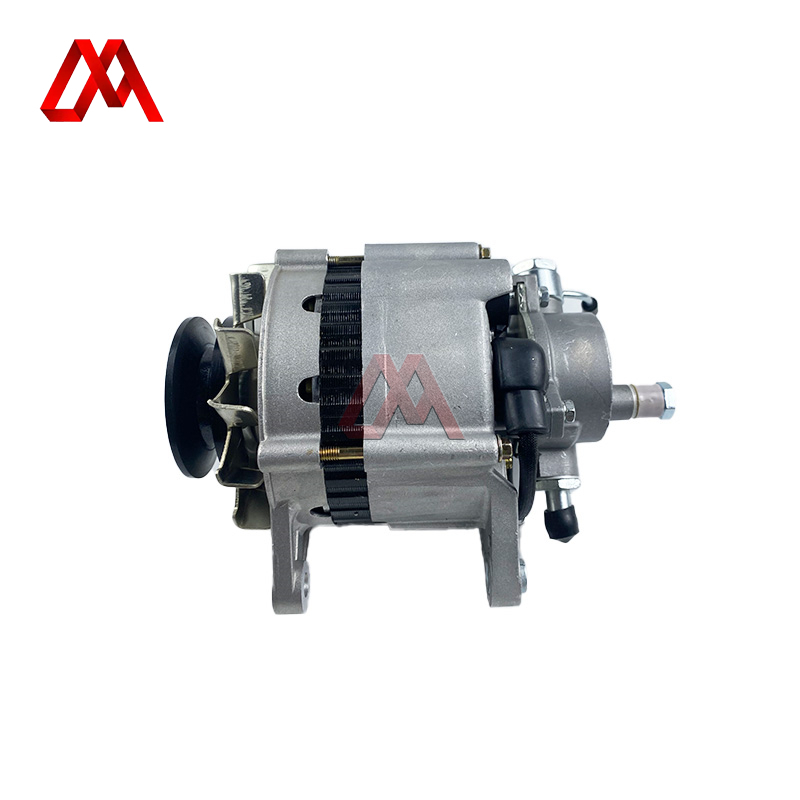

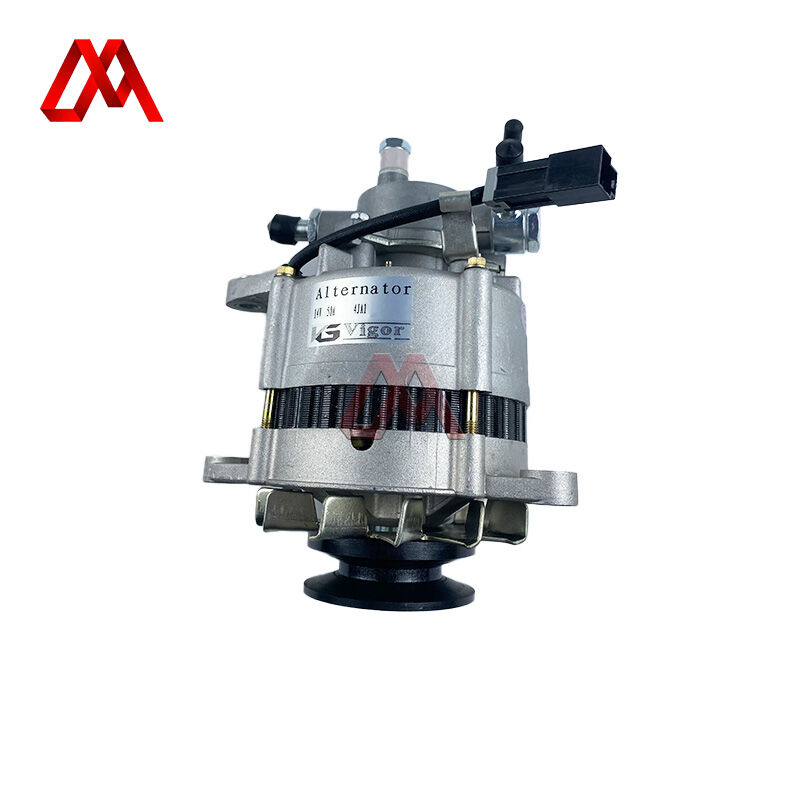

Alternator ALT-001 Truck Spare Parts for ISUZU

The Alternator is a crucial component in a truck's electrical system, responsible for generating electrical power while the engine is running. It converts mechanical energy from the engine into electrical energy, which is used to charge the vehicle’s battery and power the truck’s electrical components, including lights, air conditioning, and the radio. Without a functioning alternator, the truck would rely solely on the battery, leading to rapid battery drain and electrical malfunctions.

• Generates Electrical Power: The alternator produces the electricity required to power the truck’s electrical systems and charge the battery.

• Charges the Battery: It ensures that the battery remains charged, preventing it from depleting during operation.

• Regulates Voltage: The alternator maintains a stable voltage level, ensuring that all electrical components function properly and protecting sensitive electronic systems from power surges.

• Powers Electrical Components: As the engine runs, the alternator continuously supplies power to essential systems like the headlights, air conditioning, wipers, and dashboard electronics.

A malfunctioning alternator can lead to electrical issues and affect the overall performance of the truck. Below are common symptoms that may indicate a problem with the alternator:

1. Battery Warning Light

   • If the battery warning light on the dashboard illuminates, it’s often a sign that the alternator is not charging the battery properly. This could be due to a failing alternator or an issue with the alternator's connection.

2. Dim or Flickering Lights

   • When the alternator is not providing enough power, the truck’s lights—especially the headlights—may appear dim or flicker. This occurs because the electrical system is not getting a stable power supply.

3. Electrical Malfunctions

   • If electrical components such as the radio, power windows, or air conditioning fail to work properly, it might indicate that the alternator is unable to provide enough electricity for these systems.

4. Dead Battery

   • A battery that doesn't hold a charge or drains quickly could indicate a faulty alternator. If the alternator is not charging the battery correctly, it will lead to battery failure over time.

5. Strange Noises from the Engine

   • If you hear a whining or grinding noise coming from the engine, it could suggest that the alternator’s internal components (such as the bearings) are worn out or failing.

6. Overheating

   • The alternator can overheat if it is malfunctioning or if there is a problem with the voltage regulator. Overheating can lead to complete failure of the alternator.

7. Burning Smell

   • A burning smell, often accompanied by smoke, could indicate that the alternator is overheating or experiencing an electrical short. This is a serious issue and should be addressed immediately.

If the alternator is failing, it’s important to replace it as soon as possible to prevent electrical system failure. Follow these steps for a proper replacement:

1. Preparation

   • Park the truck on a level surface and disconnect the battery to avoid any electrical accidents. You will need tools like a socket set, wrench, serpentine belt tool, and a new alternator.

2. Remove the Serpentine Belt

   • Use the appropriate tool to release tension on the serpentine belt, which drives the alternator. Remove the belt from the alternator pulley.

3. Disconnect Electrical Wires

   • Disconnect the electrical connections to the alternator, including the main power cable and the voltage regulator wire.

4. Remove the Old Alternator

   • Unscrew the mounting bolts and remove the alternator from its position. It may require a bit of wiggling to free it from its bracket.

5. Install the New Alternator

   • Position the new alternator in place and secure it with the mounting bolts. Reconnect the electrical connections, making sure all wires are properly connected.

6. Reinstall the Serpentine Belt

   • Place the serpentine belt back onto the alternator pulley and ensure it’s properly tensioned.

7. Reconnect the Battery

   • Once everything is installed, reconnect the battery.

8. Test the New Alternator

   • Start the engine and check the voltage with a multimeter. It should read between 13.5 and 14.5 volts, indicating that the alternator is charging the battery properly.

9. Final Check

   • Check for any unusual noises, electrical malfunctions, or warning lights. Ensure that the truck's electrical systems are operating smoothly.

Replacing a faulty Alternator ensures that the truck’s electrical systems function properly and that the battery remains charged. Regular inspections and timely alternator replacements will help keep the vehicle running efficiently.
